Stationary Pipe Welding Manipulator Rotary Welding Column And Boom

Name: Stationary Pipe Welding Manipulator Rotary Welding Column And Boom
Brand: Friendship Machinery
Price: 1 USD

Quality Stationary Pipe Welding Manipulator Rotary Welding Column And Boom for sale

Brand Name : Friendship Machinery

Model Number : WM Series

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Supply Ability : 30 sets per month

Delivery Time : 30 working days after down payment

Packaging Details : Standard package

Contact Now

Stationary Pipe Welding Manipulator Rotary Welding Column And Boom

1. Description

Welding manipulator series is composed of auto welding mechanical equipment. It can use with welding rotator, widely applied to industries such as boiler, pressure vessel, petroleum, chemical industry and mechanism.the characters of machine and main dimension is designed according to auto welding process,its just the right equipment to improve welding quality and realize welding automation.

2. Feature

● Auxiliary equipment for welding center.
● Automatic welding manipulator can be adopted with various welding power (Chinese or international famous brand).
● Stretching of cross boom adapts AC frequency converter step-less speed control and run with steady speed.
● Head equipped with electric cross slides, can adjust position of welding.
● Chain break-resistant and anti-slip device in boom to guarantee safety.
● Braking device can ensure column work in safe environment.
● Customized manipulator requirements are accepted.
● Automatic flux feeding, recovering devices, wire feeder device, working platform and chair (Optional).

3.Main parameter

Specification	5×6	4×5	3×4	2×3
Rise and fall effective travel (mm)	5000	4000	3000	2000
Companding effective travel (mm)	6000	5000	4000	3000
Suitable cylinder diameter (mm)	1000-5000	1000-4000	700-3000	700-3000
Stand rotary angle	±180°	±180°	±180°	manual
Lifting speed of arm (m/min)	1	1	1	0.3
Companding speed of arm(m/min)	0.12-1.2	0.12-1.2	0.12-1.2	0.12-1.2
Trolley speed (m/min)	3	3	3	manual

Stationary Pipe Welding Manipulator Rotary Welding Column And Boom

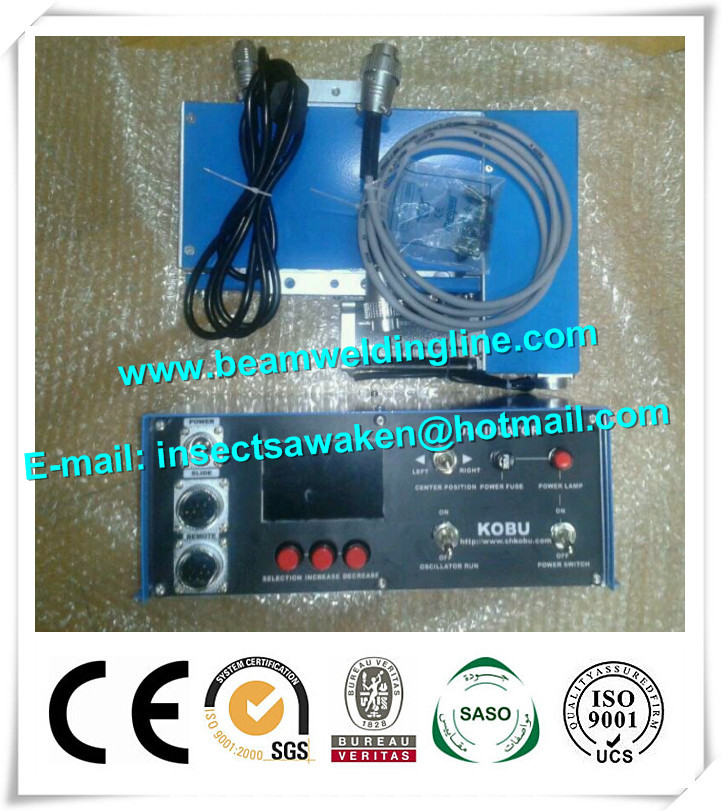

Welding Oscillate for Column and boom manipulator

● Model: KB-L Straight welding oscillate
● Power: AC220-250V, 50HZ, Single phase
● Controller size: 120*175 *75 (W *L* H)
● Weight: 2.9Kg
● Speed: 0 - 2300mm/min
● Centering movement: ±5mm
● Swing range: ±15mm
● Left-right stop: 0-2s

Wedling seam tracking device

Remote control panel with 10m cable
